Known Issues¶

1.the class has been export in a module but can not be found in anothor module?¶

There are two exported modules xmath and layout

• in xmath it exports a map like this:

py::bind—map<XMPowerTable2DMap>(m, "XMPowerTable2DMap")
	CM—SFRIAl.IZABl.F(XMPowerTable2DMap)
	;

• under layout module, in XXX.py if a line wants to get XMPowerTable2DMap data, it will fail and dum p error like this:

The reason of failure is that XMPowerTable2DMap declared is to make the binding module-local by de fault,

py::bind—map<XMPowerTable2DMap>(m, "XMPowerTable2DMap", py::module—local(false))
	CM—SFRIAl.IZABl.F(XMPowerTable2DMap)
	;

Here py::module—local(false) can make the binding module-global, and in other modules this XMPower Table2DMap data type can be used normally.

2.zmq send/recv was interrupt by the system, how to avoid that? [sheng huang]¶

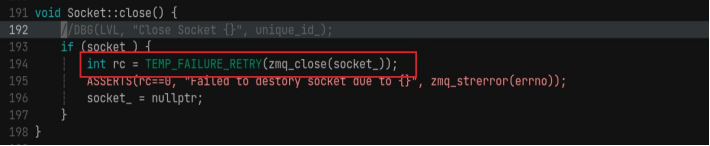

use TEMP_FAILURE_RETRY to call the send/recv ...

3.Serialization of Class Hierarchy Objects¶

For derived classes, for serialization of base class and derived classes there are some key points we should take care of:

a. The base class should be serialized by CM—SFRIAl.IZF if it has member parameters, or there is no t member parameter serialization can be left out;

b. For derived classes, in CM_SERIALIZE it must do CM_BASF_SERIALIZE for base class:

CM_SERIALIZE () {
CM_BASF_SERIALIZE(base); //base has no member parameter, or use &
                         // CM_BASF_SERIALIZE(base) when base has member parameter
ar & pl & ...;
｝

c. in .cc file the macro BOOST_CLASS_EXPORT must be used if obllects of derived classes are to be s erialized using a pointer to their corresponding base class,

	BOOST—Cl.ASS—FXPORT(derived).

Now you can use pointer of base class to serialize derived class obllects correctly.

reference:https://theboostcpplibraries.com/boost.serialization-class-hierarchies

4.How to do customer class/struct implicit convert¶

consider we need use struct MyId with a int member iid— as MyMap's
(denfine as std::unordered—map<MyId,int>) key word,
now we need to convert MyId to int, so we can easily use like this:

	import test
	mymap = test.MyMap()
	mymap[l] = l

a. Fxport customer class/struct MyId to python;
b. Define custom operator functions if needed;
c. use implicitly—convertible to do implicit convert.

here is example cpp code:

PYBINDll—MAKF—OPAff-F(MyMap);
   py::class—<MyId>(m, "MyId").def(py::init<int>()).def("getid", &MyId::getid);
  py::bind—map<MyMap>(m, "MyMap");
  // do implicit convert
  py::implicitly—convertible<int, MyId>();
｝

more code detail in

test.py
test.cpp

5.How to modify VCDYacc.yy VCDLex.ll¶

Refer to vcd/cpp/SConscript, you should not do any changes in VCDYacc.cc/VCDl.ex.cc, which is gener ated by bison/flex,
all changes should be in .yy/.ll, after you changed it, you should regenerate the cc file with the command in the SConscript

after compiling with the modified SConscript, you should update those VCDYacc.cc/VCDl.ex.cc in git, and then recover this file SConscript.
